At Huiying, we believe that every millimeter of accuracy carries the weight of industrial progress.
 |

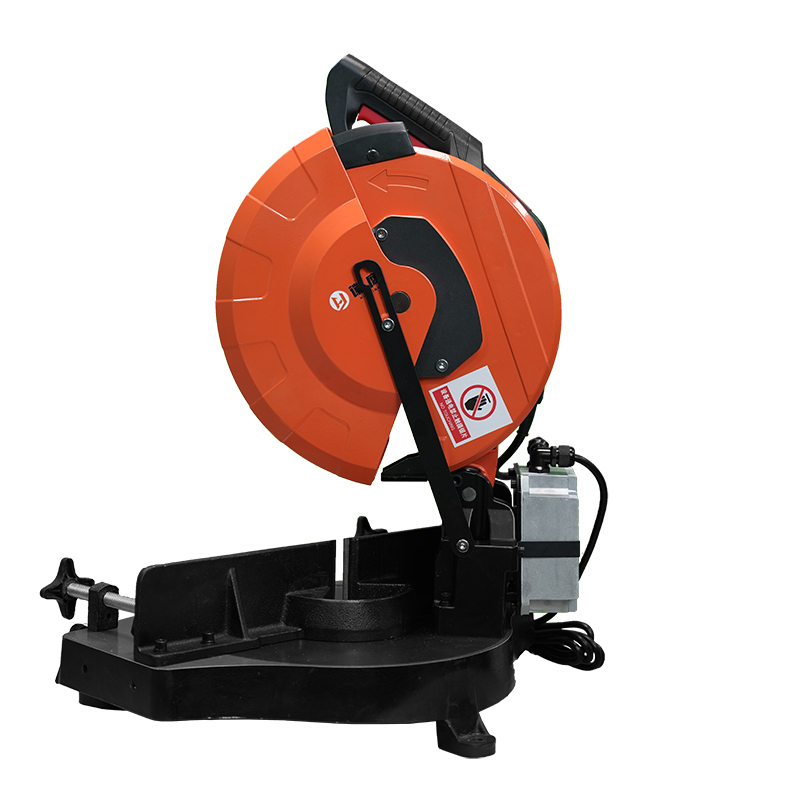

Huiying Precision Cutting Machine
Core Technical Specifications：
Motor: 3500W, 220V brushless variable frequency motor with pure copper windings.
Speed Control: Three adjustable speeds (800, 1000, 1300 RPM) for optimized cutting.
Primary Material: Mild to medium carbon steel (up to #50 grade).
Easily cuts a wide range of materials, including:
Round Tube / Pipe: Ø100 mm
Square Tube: 120 mm
Channel Steel: 160 mm
I-Beam: 140 mm
Special Sections: 80x140 mm, 100x120 mm.
Solid Stock: Steel plate, round bar.
Tubing: Various galvanized pipes.
Adjustable for 45-degree angle cutting.
